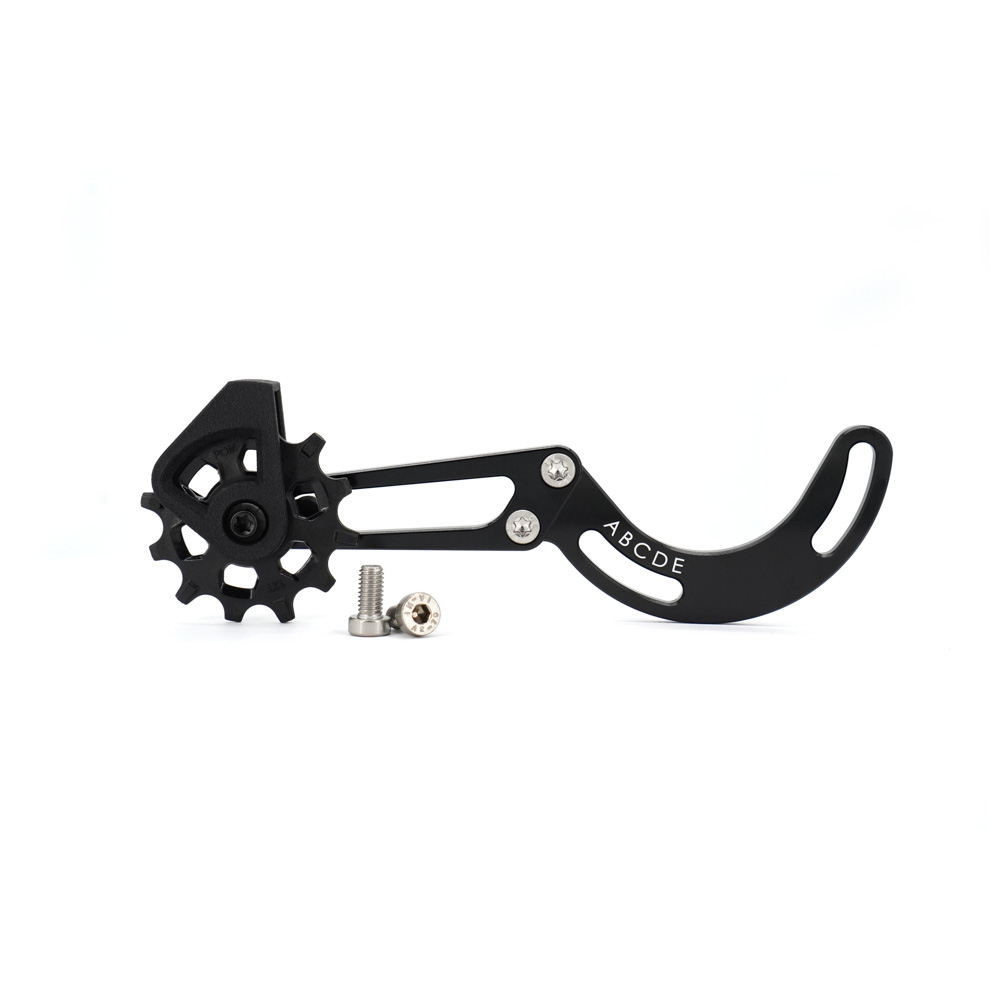

Lower Chainguide Universal HPP

https://77designz.com/web/image/product.template/1574/image_1920?unique=194cf47
(0 review)

Engineered for precision and reliability, our Lower Chain Guide is now compatible with a wide range of high pivot bike models. Tailored specifically for use with the SRAM Transmission drivetrain system, this chain guide ensures seamless integration and exceptional performance for demanding riders.

Key Features

  • Broad Compatibility: Supports leading bike models with precise mounting positions for optimal performance.
  • Designed for SRAM Transmission: Exclusively developed for 1x12 T-Type SRAM Transmission systems, ensuring flawless drivetrain operation.
  • Durable Construction: Features a robust AL 7075 T6 anodized baseplate, a PA6 12T narrow-wide pulley, and high-quality titanium and stainless steel bolts for long-lasting performance.
  • Adjustable Chainline: Includes spacers and bolts for chainline adjustments between 52-55 mm, ensuring compatibility across different setups.

Compatible Bike Models

  • Cannondale Jekyll: Position B
  • Devinci Chainsaw: Position D
  • Devinci Spartan HP: Position D
  • Forbidden Dreadnought: Position B
  • Forbidden Druid (V1 and V2): Position A
  • GT Force: Position B
  • Treck Session: Position A

Specifications

  • Mount: ISCG 05
  • Capacity: 28-34T round chainrings
  • Chainline: 52-55 mm
  • Drivetrain Compatibility: 1x12 T-Type SRAM Transmission
  • Baseplate Material: AL 7075 T6, black anodized
  • Pulley: 12T narrow-wide, made from PA6
  • Bolts: Titanium / Stainless steel
  • Color: Black
  • Weight: 65 grams (including mounting materials)

Scope of Delivery

  • 1x ISCG 05 Plate
  • 1x 12T Narrow-Wide Pulley and Cage
  • Spacers and bolts of various lengths for chainline adjustments

Installation Tips

  • Maintain a 10 mm gap between the roller's top and the chainstay for optimal performance.
  • Ensure the idler does not sit below the line between the bottom bracket (BB) and rear axle centerline to avoid potential damage during rides.

Chain Installation Guidance

When installing this chain guide on an existing drivetrain, you may require a longer chain. To determine the correct chain length, use the SRAM Transmission App for precise sizing.

This chain guide exemplifies our commitment to delivering high-quality, rider-focused components that enhance performance across multiple bike models.

75.59 € 75.59 EUR 75.59 €

75.59 €

Not Available For Sale

(0.00 € / Units)

This combination does not exist.


Intended Use: Keeps the chain in place on the chainring, preventing it from derailing. Designed for use on mountain bikes or e-mountain bikes according to category 5
Manufacturer Details: 77designz UG (haftungsbeschränkt) - An der Kolvenburg 8 48727 Billerbeck Germany
Safety Warnings: Follow the assembly instructions of the manufacturer. Ensure screws are tightened to the specified torque. Do not attempt to ride with a damaged or misaligned chain guide.
