FREESOLO™-ISCG05-38 BO

The FREESOLO ISCG 05-38 BO by 77designz is a lightweight, fully adjustable chain guide suitable for Cross Country, Enduro, and Downhill riding. Engineered with convenience in mind, this chain guide can be installed without removing the crank, using only a Torx 25 tool. With an adjustment range for chainrings from 28-38 teeth, the FREESOLO V2 incorporates Front Flip Technology, allowing tool-free chain removal and easy crank access for maintenance—ideal for those looking for both versatility and ease of use.

Features

• Easy Installation: Can be mounted without crank removal; requires only a Torx 25 tool.
• Super Boost Compatible: Adjustable chainline from 50-55 mm, designed for Boost setups.
• Ultra-Lightweight: Among the lightest chain guides available, weighing only 22 grams with hardware.
• Front Flip Technology: Enables tool-free chain removal and easy crank access for quick maintenance on the trail.
• Open Cage Design: Provides efficient mud shedding, keeping the chain and guide clean.
• Clear Adjustment Scale: CNC-milled scale simplifies setup, helping you adjust accurately for different chainring sizes.

Specifications

• Mount: ISCG 05
• Capacity: Compatible with 28-38T round chainrings
• Chainline: Adjustable from 50-55 mm (Super Boost Ready)
• Drivetrain Compatibility: 1x10, 1x11, and 1x12 setups with a clutch rear derailleur and narrow-wide chainring
• Materials:
  • Backplate: AL 7075 T6, anodized black
  • Slider: PA66 GF 10, equipped with Front Flip Technology
• Hardware: Short and Long M6 Bolts + Black Washer for Crash Plate
• Weight: 22 grams (including mounting hardware)

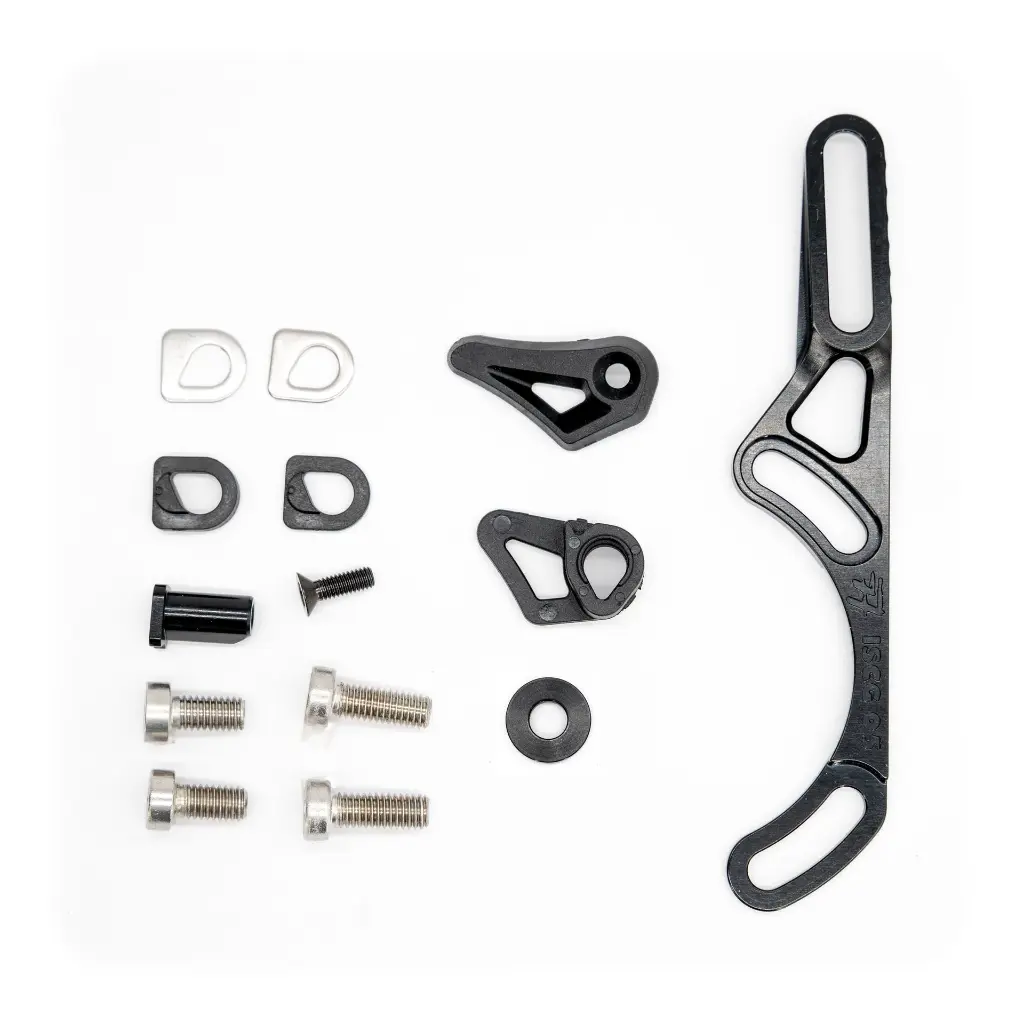

Scope of Delivery

• Chainline Spacer Set
• Slider Unit
• Mounting Hardware
• Connector for Crash Plate

Installation with OUR Crash Plate

• All needed parts are included with the chainguide.
