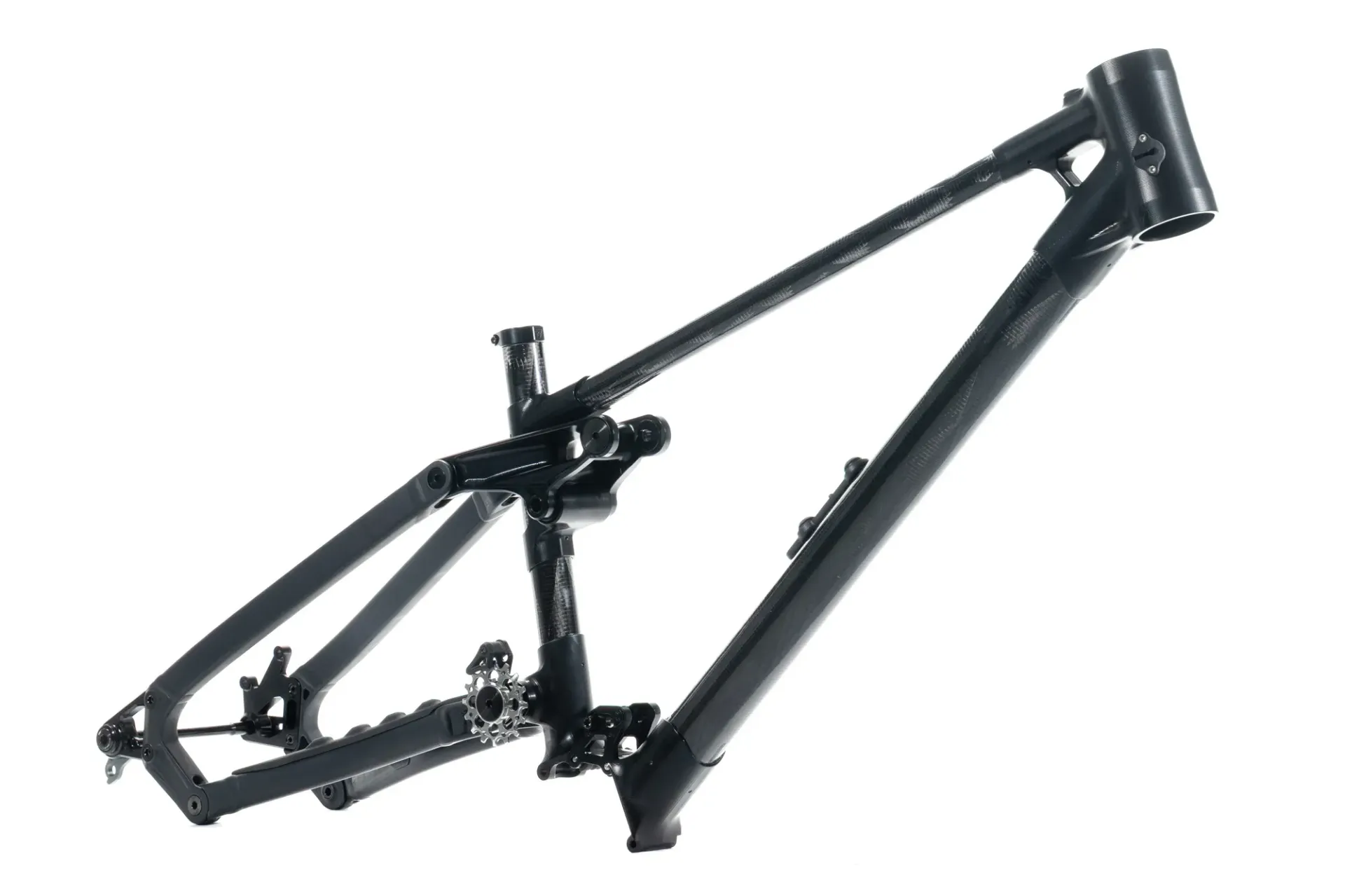

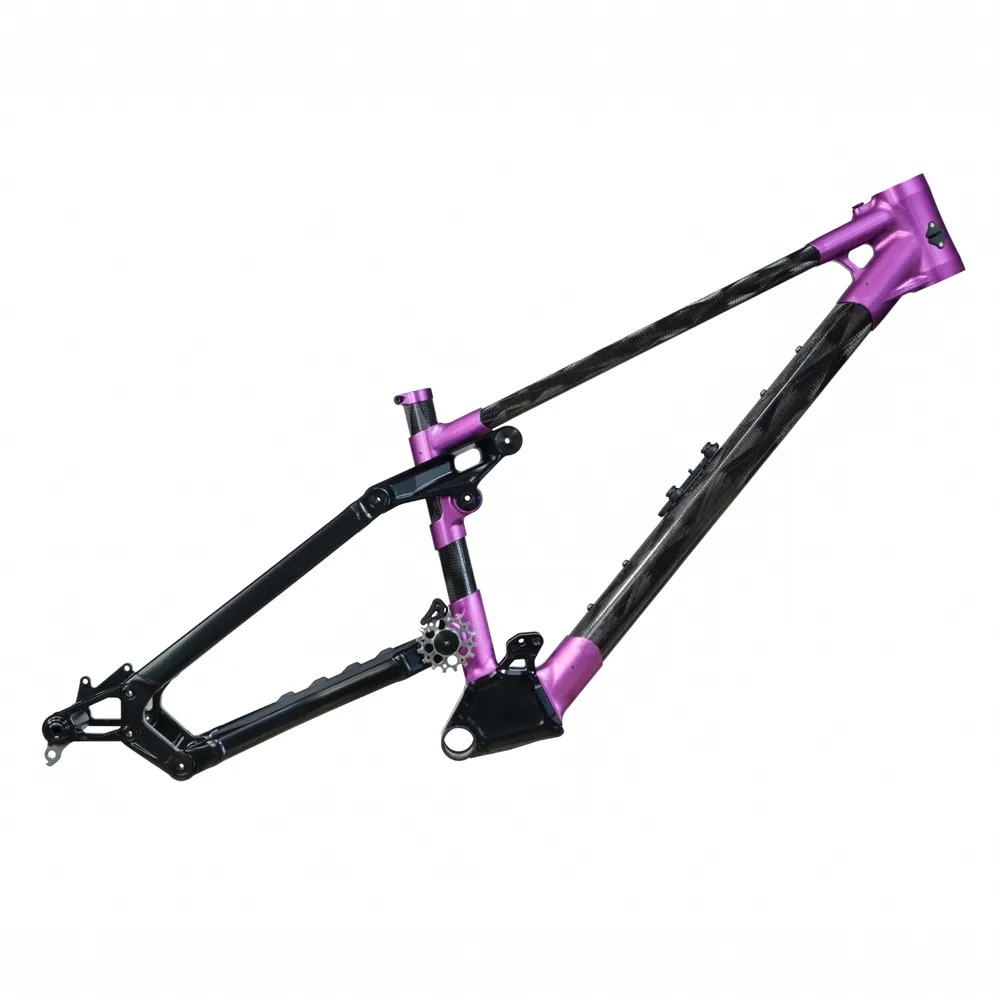

Kavenz VHP X

(0 review)

Configure your VHP X.

SIZE

Choose your frame size from S to XL.
SizeSMMLLXL

Rider Height

155–165 cm (5'1"–5'5")

165–175 cm (5'5"–5'9")

170–185 cm (5'7"–6'1")

180–190 cm (5'11"–6'3")

190-200 cm (6'3"–6'7")

FINISH

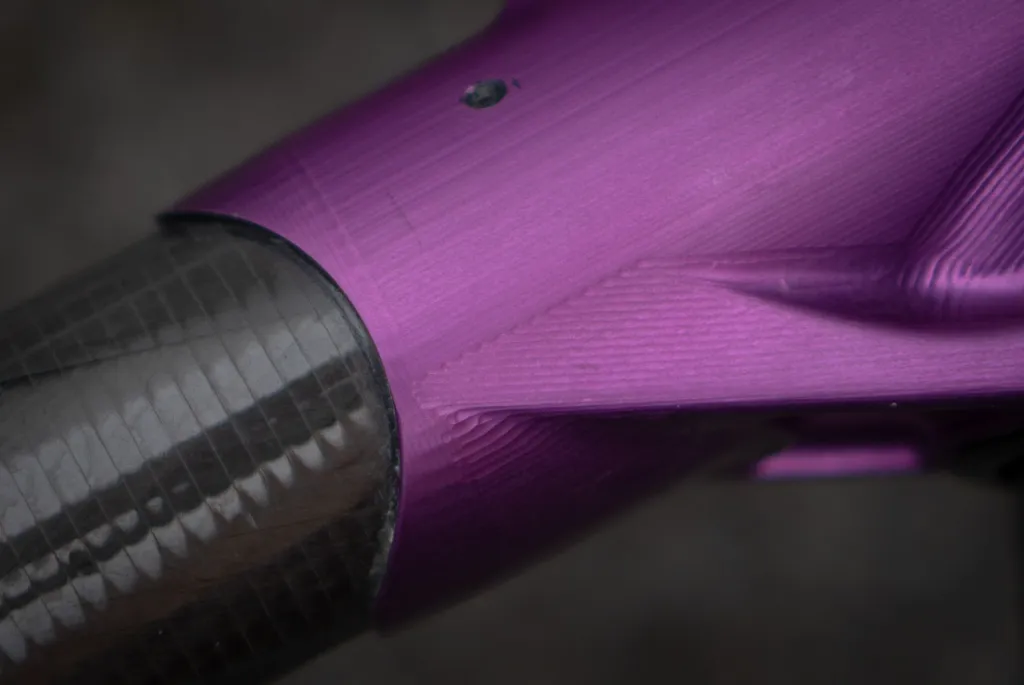

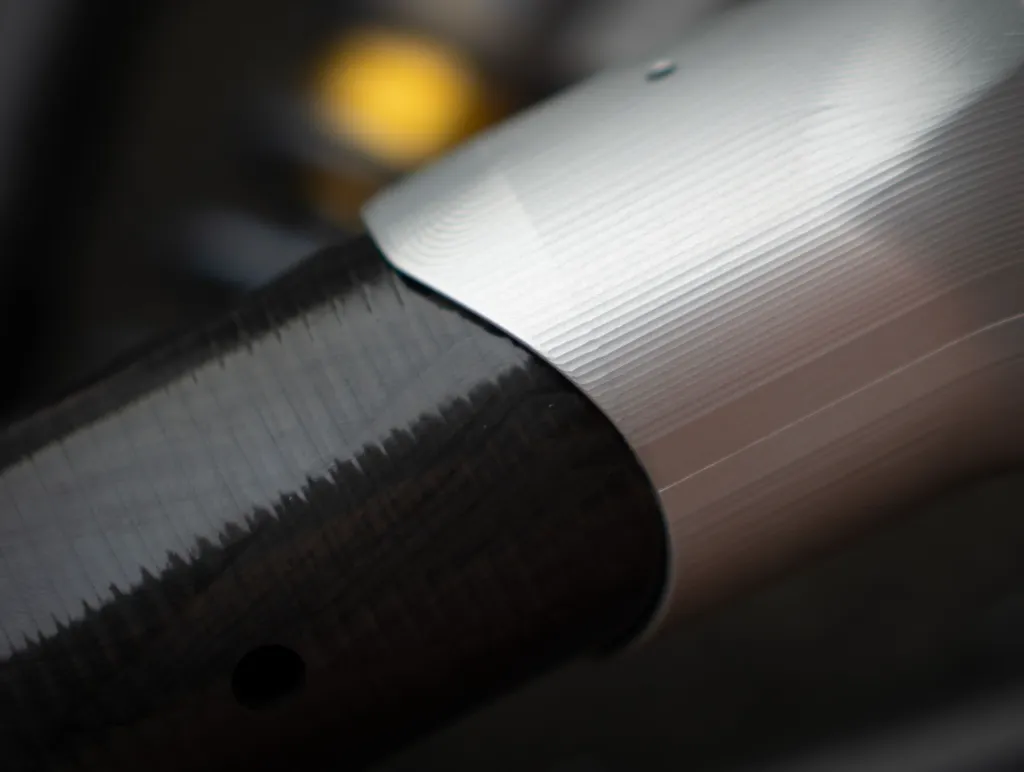

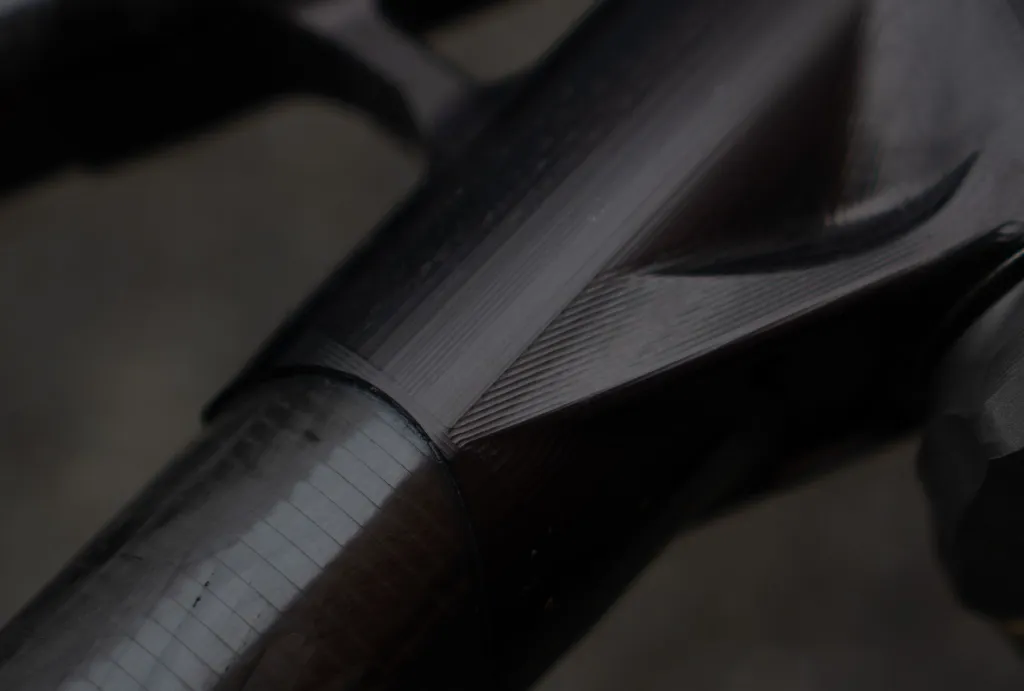

Select your lug finish: Black, Silver, or Purple

Carbon Raw Taped Finish
The carbon tubes are left in their raw tape finish and are not sanded or painted. Minor cosmetic imperfections may be visible and are a natural part of the manufacturing process. This is our most durable and environmentally conscious finish, avoiding unnecessary filler, paint, and processing while showcasing the material in its most honest form.

SHOCK LENGTH / TRAVEL

This defines your travel and the overall character of the bike:
  • 185 → 154 mm rear travel
    Shorter travel, more responsive
  • 205 → 177 mm rear travel
    Balanced enduro setup
  • 225 → 200 mm rear travel
    Maximum stability, park / DH focus
Small adjustments are possible via shock stroke (−2.5 mm stroke ≈ −5 mm rear travel)

DRIVE TRAIN MOUNT

  • BSA 73 → standard derailleur setup

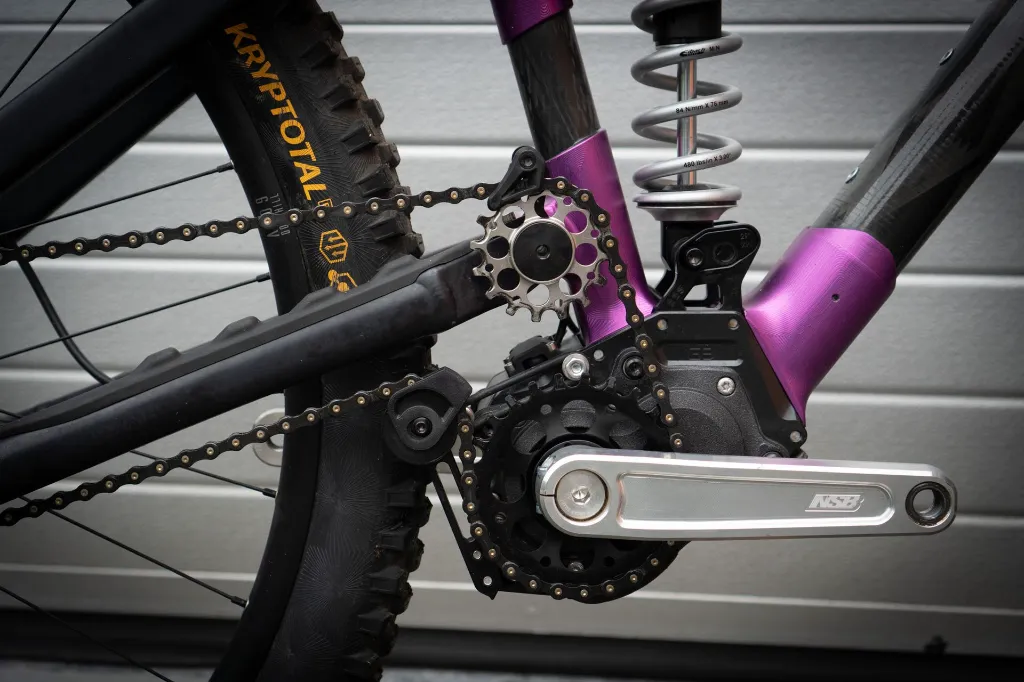

  • Pinion Interface → gearbox option

DROPOUT LENGTH

Adjusts chainstay length and overall weight balance:
  • +0 mm → short and agile (Not for 29"/225 or 29"/Pinion)
  • +10 mm → more stability ideal for M-L
  • +20 mm → maximum stability and front-end support L-XL
  • +30 mm → longest setup (tall riders, downhill race) XL

+0 Not compatible with 225 + 29" or Pinion + 29"

LEADTIME

Shipping starts in 10 weeks.

SCOPE OF DELIVERY

What´s inculded?
  • Frame (without shock)

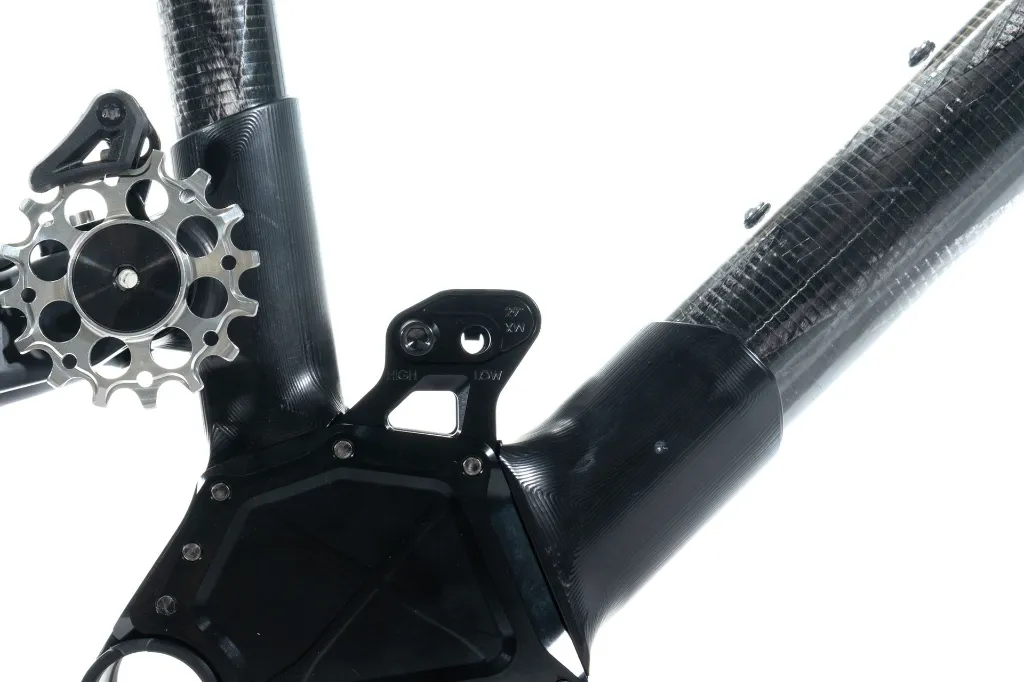

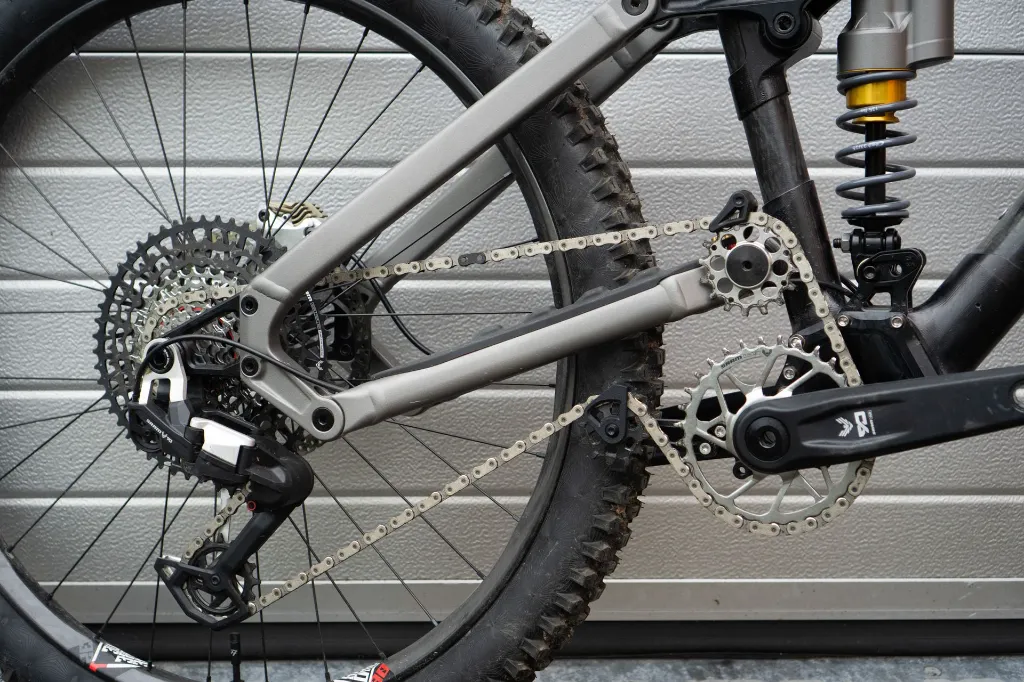

  • Idler pulley
  • Top chain guide
  • Anti-rattle tube
  • Cable routing hardware
  • 148 × 12 mm thru axle
  • UDH derailleur hanger
  • Decal set

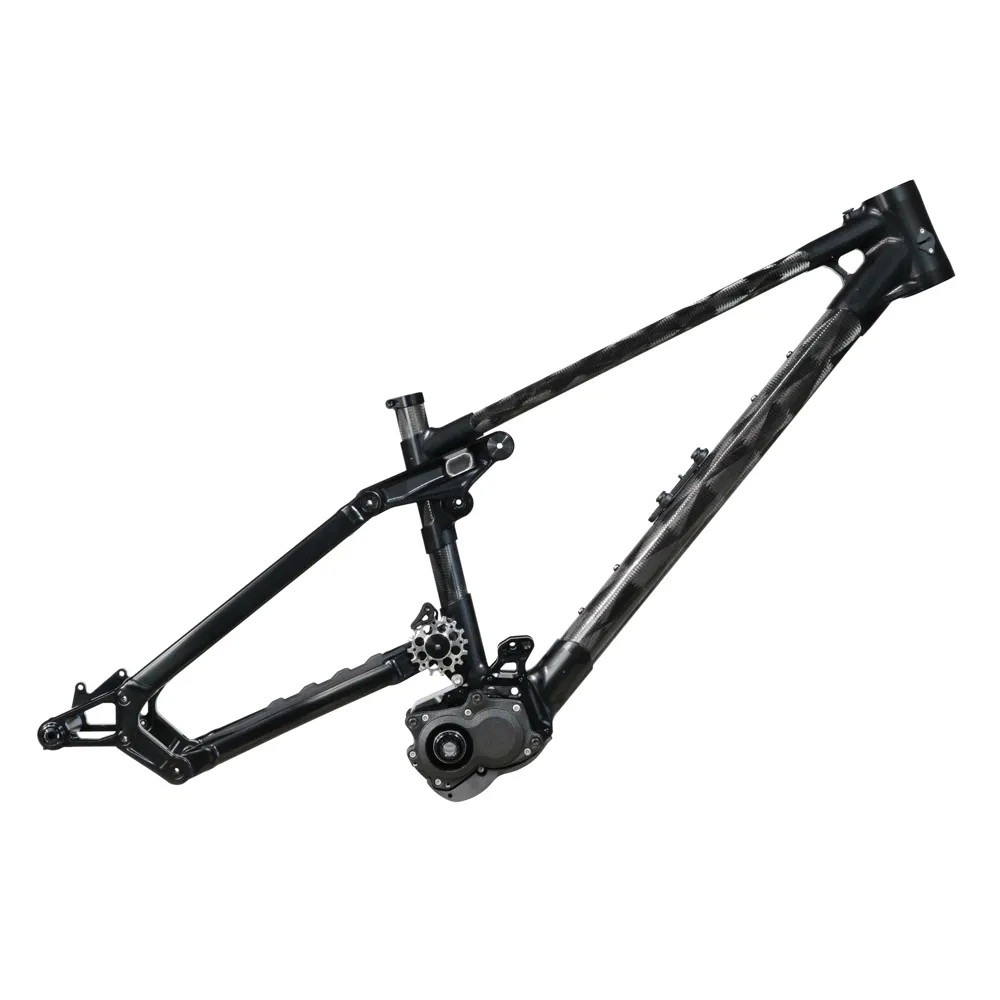

Pinion (gearbox) version includes:

  • Integrated chain tensioner and Gearbox protection plate


3,025.00 € 3,025.00 €

  • Size
  • Color - Black
  • Shock Length
  • Drive Train Mount
  • Dropout Length (+0 Not compatible with 225 + 29" or Pinion + 29")
Add to cart Buy now
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us

Intended Use: The VHP X is designed for aggressive mountain biking, including enduro, bike park, and downhill use depending on the selected setup. It is built for riders who push hard in rough terrain, at speed, and on technical trails. The frame is approved for use in Category 5.
Manufacturer Details: 77designz UG (haftungsbeschränkt) Harkortstraße 6 48163 Münster Germany Email: info@77designz.com Brand: Kavenz
Safety Warnings: Riding a mountain bike involves inherent risk. Before riding: Make sure all components are properly installed and tightened to specification Check suspension, brakes, and drivetrain for correct function Ensure your setup matches your riding style and terrain During use: Always wear appropriate protective equipment (helmet minimum) Ride within your limits and according to trail conditions Maintenance: Regularly inspect the frame and components for damage or wear Stop riding immediately if cracks, deformation, or unusual noises occur Compatibility: Only use approved components and configurations Incorrect setup or incompatible parts can lead to failure The VHP X is designed for high-load riding. Proper setup and regular maintenance are essential for safe use.
