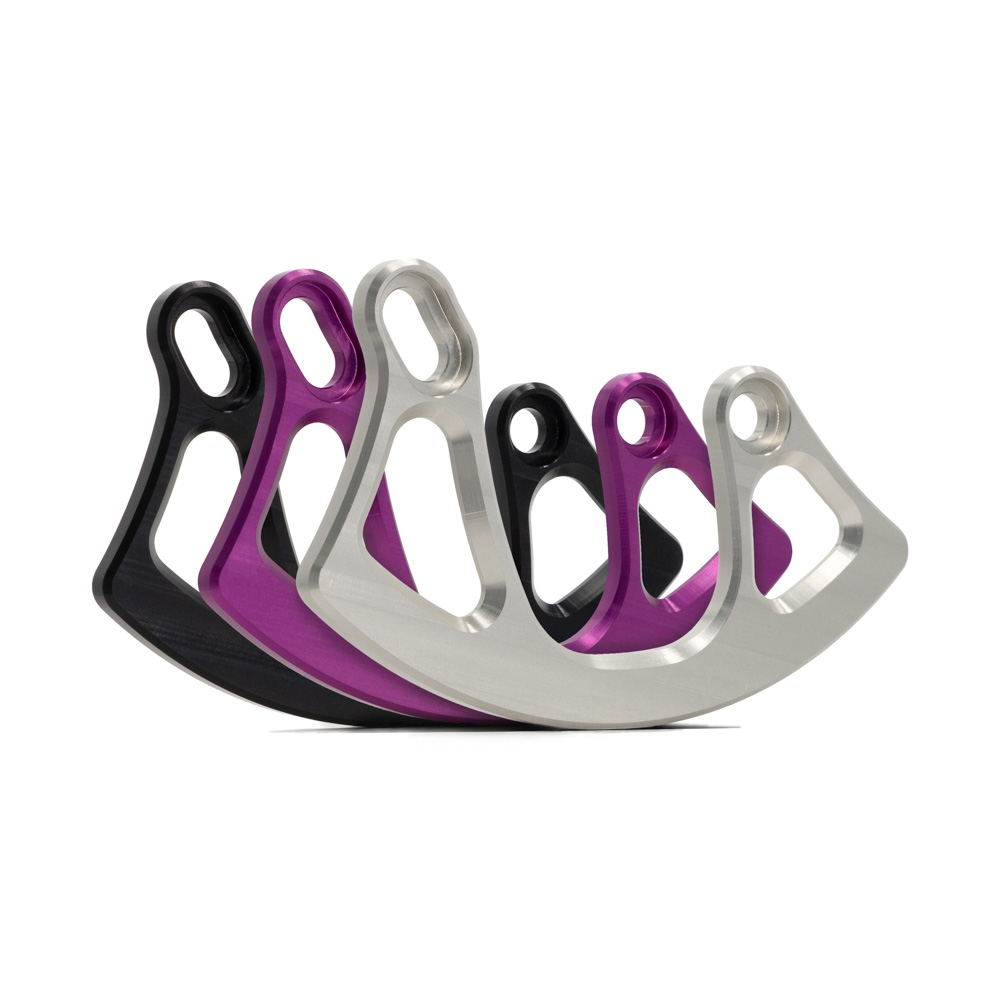

CRASH PLATE™-ISCG05-V2
SKU:
The 77designz Crashplate ISCG 05 V2 is engineered to protect your chainring from impact damage, making it ideal for riders tackling tough terrain. Constructed from resilient 7075 T6 aluminum, this crash plate embodies 77designz’s dedication to durable, functional, and stylish biking accessories that enhance rider confidence and performance.
Features
- Enhanced Protection: Minimal overlap design offers robust chainring protection while maintaining optimal ground clearance.
- Quick Installation: Features a convenient 2-hole mounting system, allowing setup without crank removal.
- Eco-Friendly Packaging: Packaged in plastic-free, recyclable paper bags.
- Optimized Contact Design: Tailored to work with various frame types, ensuring compatibility and effective protection.
Specifications
- Mounting Standard: ISCG 05
- Chainring Compatibility:
- Round: 30–36T
- Oval: 28–34T (+2 teeth)
- Material: High-strength 7075 T6 Aluminum
- Color Options: Black, Silver, Purple
- Weight:
- 30T: 25g
- 32T: 27g
- 34T: 29g
- 36T: 31g
- Diameter:
- 30T: 133 mm
- 32T: 141 mm
- 34T: 149 mm
- 36T: 157 mm
Scope of Delivery
- 1 x Crashplate ISCG 05 V2
- 2 x M6x11 stainless steel hollow bolts
- 1 x 77designz Sticker
Info
Does not fit all Santa Cruz carbon frames because their ISCG 05 has too large tolerances. It is best to measure before ordering, the distance between the lower two ISCG threads center to center should be in the range of 53-57 mm
The bash guard is 5 mm thick, and the screws are flush. The screws we use are hollow drilled so that they can shear off in case of an overload. These bolts prevent damage to the frame.
Bolts Most of the bike frames nowadays are designed to carry the load introduced by a Taco Bashguard or Crash Plate; regardless, you should still consult your frame manufacturer about whether your frame is approved for our crash plate.
Intended Use:
Designed for use on mountain bikes or e-mountain bikes according to category 5
Manufacturer Details:
77designz UG (haftungsbeschränkt) - An der Kolvenburg 8 48727 Billerbeck Germany
Safety Warnings:
Ensure proper installation and torque settings, preferably by a qualified bicycle mechanic, using only compatible and approved components.
Regularly inspect parts for wear, damage, or cracks, especially after impacts, and replace if necessary.
Use components only as intended and maintain them according to the manufacturer’s instructions to ensure safety and performance.
