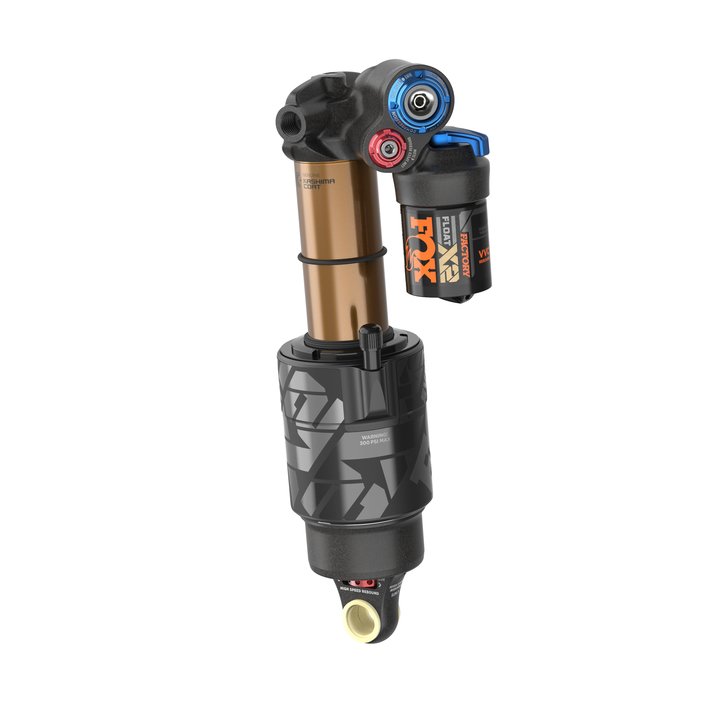

2024 Fox FLOAT X2 205x65 – Kavenz VHP16 Tuned
SKU: 1002262
Specifically tuned for the Kavenz VHP16, this Fox FLOAT X2 (205x65mm) rear shock is optimized to enhance the VHP16’s kinematics, providing improved traction, support, and control. With Kavenz-specific damping adjustments, this version ensures maximum performance on technical descents while maintaining efficiency on climbs. The Orange Neutral Logo design keeps a clean and professional aesthetic, while Fox’s high-end technology guarantees a smooth and controlled ride.
Features
- Kavenz VHP16-Specific Tuning – Optimized damping and air spring configuration tailored to the VHP16’s suspension characteristics for better small bump compliance, mid-stroke support, and bottom-out resistance.
- 2-Position Adjustability – Easily switch between Open and Firm modes for optimal efficiency when climbing or descending.
- High and Low-Speed Compression & Rebound Adjustments – Full control over damping settings to fine-tune your ride based on terrain and personal preference.
- EVOL Air Spring Technology with 0.3 Spacer – Enhances initial sensitivity and provides consistent support throughout the travel.
- Custom CL002 & ECR010 Tune – Fine-tuned for the Kavenz VHP16, ensuring perfect suspension performance under aggressive riding conditions.
- Rezi CM Compression Design – Advanced oil flow control for increased damping consistency and fade resistance on long descents.
- Durable Kashima Coating – Reduces friction for a smoother ride and increased longevity.
Specifications
- Model: 2024 Fox FLOAT X2
- Size: 205 x 65 mm
- Mount Type: Trunnion
- Adjustment: 2-position lever (Open/Firm), high-speed & low-speed compression, high-speed & low-speed rebound
- Air Spring: EVOL (Extra Volume) with 0.3 spacer
- Damping Tune: CL002 & ECR010 (Kavenz VHP16 specific)
- Reservoir Type: Rezi CMOrange
- Coating: Kashima
- Logo Color: Orange Neutral
- Bike Compatibility: Kavenz VHP16
Scope of Delivery
- 1x 2024 Fox FLOAT X2 205x65 (Kavenz VHP16-Tuned) Rear Shock
- Pre-installed 0.3 spacer
- Mounting hardware included 22.2
This shock is the perfect match for the Kavenz VHP16, ensuring you get the most out of your bike’s progressive suspension design. Let me know if you need further details or setup recommendations
Intended Use:
Designed for use on mountain bikes or e-mountain bikes according to category 5
Manufacturer Details:
77designz UG (haftungsbeschränkt) - An der Kolvenburg 8 48727 Billerbeck Germany
Safety Warnings:
Ensure proper installation and torque settings, preferably by a qualified bicycle mechanic, using only compatible and approved components.
Regularly inspect parts for wear, damage, or cracks, especially after impacts, and replace if necessary.
Use components only as intended and maintain them according to the manufacturer’s instructions to ensure safety and performance.
