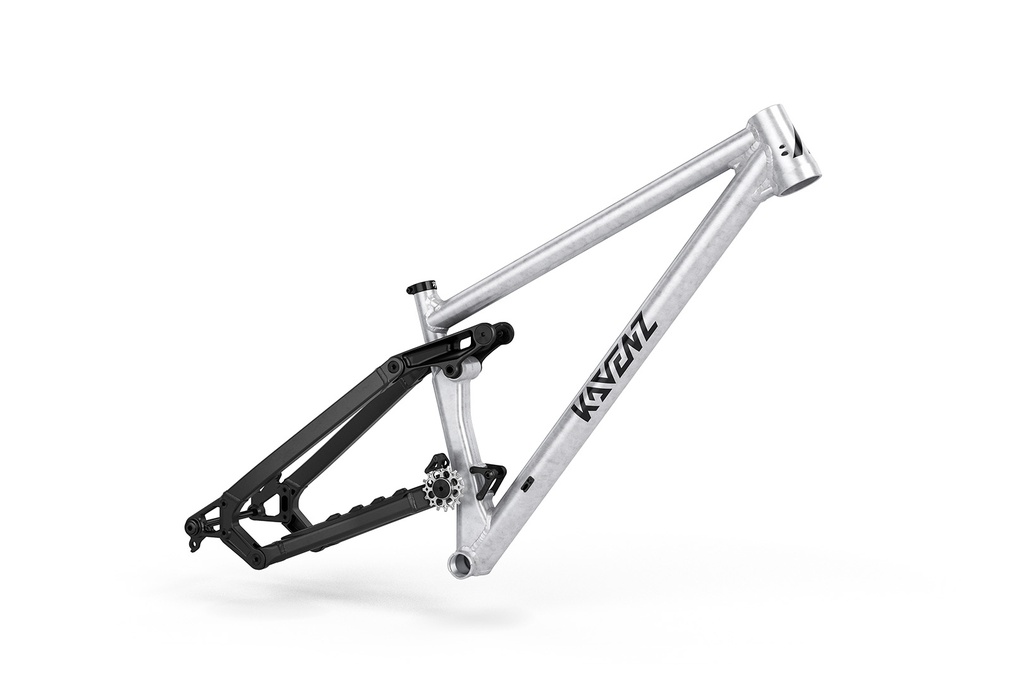

Kavenz VHP V7

https://77designz.com/web/image/product.template/611/image_1920?unique=08fc530
(0 review)

Design your dream bike in four easy steps​ with the Kavenz VHP Platform Configurator.

Step 1: Choose Your Frame Size

Select the size that fits you best, ranging from S to 3XL. If you’re looking for semi-custom geometry contact us via email to discuss your specific requirements.

Step 2: Select Your Shock Mount Configuration

  • 12-29: Downcountry 120mm rear travel with 29” wheels.
  • 14/16-Mx: Mixed wheel setups (29” front / 27.5” rear) AM or Enduro
  • 14/16-29: Full 29” wheel configurations. AM or Enduro
  • 18-Mx: Freeride and local DH with mixed wheels (29” front / 27.5” rear).

Step 3: Choose Your Dropouts

  • Standard 0mm Dropouts: Included with every frame for a balanced ride.
  • +10mm Dropouts: Perfect for added stability and longer chainstays.
  • +20mm 18/29 Dropouts: Specially designed to transform the 18-Mx frame into a full 29” setup for maximum versatility.

Step 4: Pick Your Frame Finish

  • RAW (Cerakote Black Rear and RAW front)
  • Powder Coated (200+ colors, bespoke after order)
  • Cerakote Black (Ultra Thin and super light ceramic coarting)


💡

Leadtimes:

Frame production leadtimes vary between 2 to 8 weeks, depending on demand and customization options.


Your custom Kavenz VHP frame is the first step toward conquering the trails your way. Start your journey today!

2,348.74 € 2348.74 EUR 2,348.74 €

2,348.74 €

Not Available For Sale

(0.00 € / Units)
  • Size
  • Shock Mount
  • Dropout Length
  • Finish

This combination does not exist.

Contact Us

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days (Frames and Customized products on request)


Product Safety and Compliance

Intended Use: Designed for use on mountain bikes or e-mountain bikes according to category 5
Manufacturer Details: 77designz UG (haftungsbeschränkt) - An der Kolvenburg 8 48727 Billerbeck Germany
Safety Warnings: Ensure proper installation and torque settings, preferably by a qualified bicycle mechanic, using only compatible and approved components. Regularly inspect parts for wear, damage, or cracks, especially after impacts, and replace if necessary. Use components only as intended and maintain them according to the manufacturer’s instructions to ensure safety and performance.


The Kavenz VHP12 is a high-performance mountain bike frame that seamlessly blends cross-country efficiency with downhill prowess. With 120mm of rear travel, it offers exceptional traction on steep climbs and descends with the confidence of a mini downhill bike. This model is ideal for riders seeking a responsive and stable ride on varied terrains.

Key Specifications:

  • Rear Travel: 120mm (convertible to 140mm, 150mm, 160mm, or 180mm with appropriate shock and mount adjustments)
  • Shock Size: Trunnion 185x47.5mm (Mounting Hardware: 22x8mm)
  • Fork Compatibility: 130-140mm travel (Crown to Axle: 547mm)
  • Frame Material: Main Frame: AL-7020; Rear End: AL-6061; Rocker: AL-7075
  • Weight: Approximately 3.28 kg (size M, raw finish, including hardware, excluding shock)

Geometry Highlights (Size M):

  • Reach: 475mm
  • Head Tube Angle: 65.4°
  • Seat Tube Angle (Effective): 78.9°
  • Chainstay Length: 425mm (adjustable with interchangeable dropouts)
  • Wheelbase: 1195mm

The VHP12's geometry is optimized for agility and stability, making it a top choice for riders who enjoy both climbing and descending with equal enthusiasm. Its steep seat tube angle ensures efficient climbing, while the slack head tube angle provides confidence and control on descents. The adjustable chainstay length allows riders to fine-tune the bike's handling characteristics to suit their preferences.

For more detailed information and customization options, you can visit the official Kavenz VHP12 page.

Kavenz


The Kavenz VHP14 is a high-performance trail bike designed for riders seeking a responsive and engaging ride on diverse terrains. With 143mm of rear travel and a geometry that balances agility with stability, the VHP14 is tailored for those who thrive on local and flow trails.

Key Specifications:

  • Rear Travel: 143mm (convertible to 120mm, 150mm, 160mm, or 180mm with appropriate shock and mount adjustments)
  • Shock Size: Trunnion 205x57.5mm
  • Fork Compatibility: 160mm travel
  • Frame Material: Main Frame: AL-7020; Rear End: AL-6061; Rocker: AL-7075
  • Weight: Approximately 3.28 kg (size M, raw finish, including hardware, excluding shock)

Geometry Highlights (Size M):

  • Reach: 465mm
  • Head Tube Angle: 64.4°
  • Seat Tube Angle (Effective): 77.9°
  • Chainstay Length: 425mm (adjustable with interchangeable dropouts)
  • Wheelbase: 1225mm

The VHP14's geometry is optimized for a lively and responsive ride, making it an excellent choice for riders who thrive on fast-paced trail adventures. Its steep seat tube angle ensures efficient climbing, while the slack head tube angle provides confidence and control on descents. The adjustable chainstay length allows riders to fine-tune the bike's handling characteristics to suit their preferences.

For more detailed information and customization options, you can visit the official Kavenz VHP14 page.

Kavenz


The Kavenz VHP18 is a high-performance mountain bike frame designed for riders seeking exceptional downhill and freeride capabilities. Building upon the proven Kavenz DNA, the VHP18 offers increased travel and slacker geometry, positioning it as the robust sibling of the VHP16.

Key Specifications:

  • Rear Travel: 182mm (convertible to 150mm or 160mm with appropriate shock and mount adjustments)
  • Shock Size: Trunnion 225x75mm
  • Fork Compatibility: 180-200mm travel
  • Frame Material: Main Frame: AL-7020; Rear End: AL-6061; Rocker: AL-7075
  • Weight: Approximately 3.28 kg (size M, raw finish, including hardware, excluding shock)

Geometry Highlights (Size M):

  • Reach: 452mm
  • Head Tube Angle: 63.5°
  • Seat Tube Angle (Effective): 77°
  • Chainstay Length: 419mm (adjustable with interchangeable dropouts)
  • Wheelbase: 1244mm

The VHP18's geometry is optimized for stability and control at high speeds, featuring a slack head tube angle and a steep seat tube angle to position the rider efficiently for both climbs and descents. The adjustable chainstay length allows for customization of the bike's handling characteristics to suit individual preferences.

For more detailed information and customization options, you can visit the official Kavenz VHP18 page.

Kavenz

Scope of Delivery

  • Frame (Without Shock)
  • 16T Idler Pulley
  • Chain Guide
  • Anti-Rattle Tube
  • Cable Routing Parts
  • 148x12 Through Axle
  • UDH Derailleur Hanger
  • Decal Set (Black)

Virtual High Pivot Technology

  • Rearward Axle Path: Unparalleled control and traction on the most challenging trails.
  • High Anti-Squat Design: Smooth power transfer for efficient pedaling.
  • Low Pedal Kickback: Ensures a seamless riding experience.
  • Balanced Anti-Rise Geometry: Stability even under heavy braking.

Exciting New Features for the V7

  1. Interchangeable Dropouts
    Customize chainstay lengths with options: 0 (standard), +10, and +20.
  2. UDH Interface
    Compatible with standard universal derailleur hangers and transmission direct mounts for broader drivetrain setup options.
  3. Lighter Rocker
    Fully FEM optimized, weighs only 270 grams for improved responsiveness.
  4. Longer-Lasting Idler Pulley
    Designed for durability, ensuring smoother rides over time.
  5. Black Oxide Bearings
    High-quality Enduro Bearings extend the lifespan of your frame’s bearings.
  6. AXS Blinder
    Eliminate cable clutter with a cover for cable routing outlets, leaving no open holes in the downtube.
  7. Unbranded Design
    Frames come without branding, giving you a blank canvas for personalization. A decal set is included for optional branding.

Sustainability and Quality

Kavenz frames are custom-made with a focus on environmental responsibility. Unlike mass-produced frames, minor imperfections in the surface coatings are considered part of the unique character of each frame. This approach reduces waste, aligns with sustainability, and ensures every product meets high standards of craftsmanship.

If you have any questions regarding your order or the frame, please don't hesitate to reach out. We are here to help and happy to support you!
